Thursday, October 17, 2013

FSSO with Device based policies

While surfing on the web, I have stumbled upon a series of posts discussing FSSO implementation strategies (agent, pooling mode etc.) and the ways they affects computers used by IT personnel. A most common complaint describes a situation when a particular station may change authentication groups (in FSSO) because IT admins have used it to remotely access another AD bound device under different credentials.Simply put, working from a single station sitting behind a Fortigate unit with multiple RDP sessions active is a real pain for IT personnel.

Surely, multiple solutions exist. However, I would like to share a combined approach that allows to effectively distinguish between IT personnel only stations and user accessible devices. At the same time, the proposed approach ensures that devices not bound to domain but using the same corporate network may still be allowed and classified based on device type.

We will need:

Custom defined devices

1) In the User&Device --> Device Definition, click on Create New (on top of the list)

Notice that you may add multiple MAC addresses per device - a useful feature for VM machines that will share the same type of network access
2) Search for devices in the list of detected devices.
Note that if you want to detect and classify devices you should make sure that it is enabled on appropriate interface. Go to Network-->Interfaces--> Select appropriate interface and check for the option "Device Management."

Device Groups

We need to group our devices in one or many groups according to their permissions and other related info.
In User-->Device-->Device Groups, click on Create New (top left corner of the list). Name the group and add the devices that it should include.

Now, we are ready to modify firewall policies. Our goal is to make sure that the group we have created gets authentication before FSSO based on their MAC address and not on their FSSO associated credentials.

Firewall rules

Custom device group policy

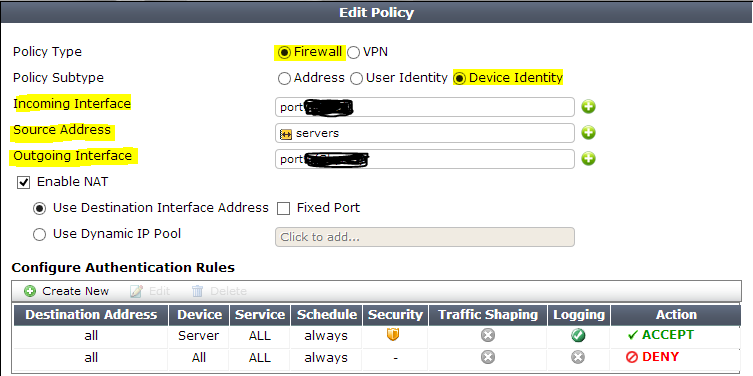

Assuming that we have a set of servers that use WSUS and many other services accessing network that also act as ADs, we need to ensure that will not get blocked or capped. We need a new policy with the following configs:

  • Policy type: Firewall
  • Policy subtype: Device Identity
  • Incoming Interface: port on Fortigate unit used by our servers
  • Source address: servers or all or anything you usually use
  • Device: Server- the device group name associated with our server (see authentication rules)
  • etc. - all other configs as usual for internet access

Once the config is complete, make sure that the policy we have created is placed on the list before other policies that have the same combination of Incoming/Outgoing interfaces.

For example, we need to make sure that all users(system) directly logged onto our servers are not passing through FSSO when communication from port 7 to port 9.
In this example, our servers policy is first. FSSO policy is the second one. Third one is a generic per device type policy created to capture all devices that are not AD bound or authenticated otherwise.

Generic device policy

As we have stated earlier this third policy is something that we are actively using to create custom traffic shaping and filtering rules for guest devices. The idea is simple: we do not want
  • iThings to use our network to get updates,
  • all types of full-blown OSes to use torrents(it is not an issue on tablets etc.) or get updates,
  • we will monitor botnet behavior and limit certain websites only for some device types
  • etc.
In short we are looking to customize, per device, our rules. To make sure that all non FSSO users get to the third policy, we need to enable a "Skip this policy for unauthenticated user" feature in the second FSSO policy:

Now we can add a generic device policy:


We now have three policies:
  1. Used for our internal admin devices
  2. Used for FSSO AD authenticated users
  3. Used for any other device that was not captured by the first two policies


This method uses MAC address association. A malicious device that has spoofed a MAC address can pose as a server and will get the same rights. However, I hope that many other fail-safe tools exist on your network preventing impersonation.

Finally, if you have more ideas or have implemented it differently, please share!

Sunday, October 13, 2013

Adding OS definitions to Aerohive

In the default config, Aerohive has many OS objects. However, you will find that many are missing. In my install, I have found that all Blackberry devices were identified as Linux/unknown.


First, we need to get the list of DHCP fingerprints:

In this file, we will find the blocks of the info we need to add to our OS object list.

OS objects

OS objects can be found in Configuration --> Advanced configuration --> Common objects --> OS objects. A full config can be exported in the form of a text file. In fact, I strongly suggest to have a look at the way it is formatted before adding or modifying anything. Once you are familiar with the format and ready to add a new definition, you can use Import function to do so.

In our case, we would like to add Blackberry to the list. In the online dhcp_fingerprints.conf, we find the following:
[os 1101]
description=RIM BlackBerry

We format it according to the format found in Aerohive:

Now we can simply create a text file and import it into our config. Note however that there maybe conflicts in object definitions! When searching for Blackberry keyword in the dhcp_fingerprints.conf  you will find the following:
# 1,3,6,15 : 3 CONFLICTS with BlackBerry
[os 404]
description=OEMed Wireless Router

Of course this conflict will never appear unless we have such a device on the network and in our OS objects list. This could explain why Aerohive adds only most common objects in the default config.

Saturday, August 3, 2013

Fortigate - widget malfunction - multiple bugs

If you have tried to reconfigure/modify, add or move a widget and noticed that your action was not completed:

Fortigate has confirmed that it is a bug in UI and in CLI. There are multiple bug reports associated with this case and it should be fixed in the next release.

Versions affected by these bugs: v5.0 patch release 2 and carried over to 3.
Fix expected: v5.0 patch release 4 which is still pending official release at this time

UPDATE from 19-08-2013: For me, it is confirmed that the bug was not fixed in the v5.0 patch release 4. Moreover, I see a clear slowdown in the authentication of Fortigate after applying the patch: the first call seems slower than before. While this patch fixes many bugs, more testing is needed.

UPDATE from 27-08-2013: The support insists that there are two widget types: "old" and "new" the old being available only through CLI. My experience differs: I have been able to reset to default all widgets and recreated the ones I need through GUI. I was able to successfully create and modify both "traffic history" and "interface history" types.
I have requested additional research on the topic but for now it looks like the support is a big disappointment. Is it just me or everyone feels that Fortinet support is not as good as it used to be? Often, they do not have the latest information, are not trained and have no idea on how to help you...

UPDATE from 28-08-2013: The support has totally ignored the fact that GUI worked as expected after a reset.  However, they did confirm that the widget named "traffic history" is the one that may be removed in the future patches as it is considered CPU intensive and was made available only because many customers have requested it.

Tuesday, May 28, 2013

Fortigate user monitor - Fixed bug #0193766

BUG: 0193766 (FSSO Auth users are not showing up in GUI).

According to Fortinet support, the issue with authenticated users not showing in the User Monitor will be fixed in the version 5.0.3.

UPDATE 03-08-2013: It was kind of fixed...
  • now we have to tick an option to see the list;
  • you cannot anymore deauth a user or all of them (if all users are FSSO type);
  • you cannot see the policy(ies) used by FSSO user, but you can filter based on these policies ???

Wednesday, March 13, 2013

Fortinet - Device Identity and Custom groups

Following documents from Fortinet, FortiOS 5 supports policies based on device groups.
Following support documents may be useful:

I have already blogged about my partial solution that employs some sort of the support for device based firewall rules. However, I have recently found that in Fortigate we can define our personal permanent groups.  That is, we can create a group called Servers that regroups different types of machines that will not be purged or cleaned automatically.
Note: At the moment, I do not know how much time it takes but I'm sure that the device list is automatically purged by Fortigate unit on a regular basis.
Custom device group functionality may be particularly useful in scenarios where some mix of clients and servers connect on the same port through Fortigate unit to internet or to some other internal service. In this scenario, we would like to make sure that our servers, VMs etc. are properly classified and allowed the access they are supposed to get not based on the devie type but rather on services they provide.

For example, one of my machines is a VM hosting all sorts of servers with different responsibilities (proprietary update services, print services, windows updates, rdp etc.). For this MAC address, I want all outgoing traffic to be allowed. Moreover, there are 4 MAC's associated with this machine: I want them all grouped under the same name. All this and some more can be achieved by using device groups.

In order to set a custom device group and regroup our special devices, we have to do the following:

  • User&Device --> Device --> Device Group  create a new group, let us call it Server. This group will be used to create a special rule for our servers.

  • User&Device --> Device --> Device Definition assuming that your server has already tried to access internet(for updates or other) it will be in the list. Find it and modify the entry by assigning it to a custom group. You could also use the same interface to associate multiple MAC`s belonging to the same machine. <

  • In Firewall rules you will be able now to use this group and assign special rules to this group.

Monday, March 4, 2013

Fortinet - client-less FSSO for AD

Following a relatively detailed reply from Fortinet support team it looks like a client-less FSSO needs the following:

  • AD credentials - to configure LDAP a user name/password set is needed with an ability to read from LDAP (a normal user should do). With Win Server 2003 there may be some anomalies with limited user accounts.
  • LDAP - should be configured for each DC, the same credentials will be used to do the pulling.
  • Pulling - by default pulling occurs every 10 seconds, but may be configured for an interval from 1 to 30 sec. Also, ports 8000 and 445 need to be open.
According to support, the behavior is a bit different from classic config. Assuming that the interval is 10sec and a user has logged in just after pulling has occurred. If we assume that in the next 9 seconds the system or the user tries to access Internet, the IP will be classified as guest. Once the pulling passed the IP will be reclassified according to the logs in the DC.

Fortinet considers that client-less method is better for 1-3 DC's but they still think that a collector agent is the best choice for a config with more than 3 DC's.

Saturday, March 2, 2013

Firewall Guru: Enhanced Single Sign-On to Windows AD in FortiOS 5...

Sebastian reports that:
Firewall Guru: Enhanced Single Sign-On to Windows AD in FortiOS 5...: FortiOS 5.0 brings with it an enhancement to how single sign-on can be performed in a Microsoft Active Directory environment. In prior ver...

While I have seen the same info in the official guide, I'm not sure that this does work properly. I will try to see with Fortinet support team how this is different from collector agent.

UPDATE: I got a reply from Fortigate see my next post in the blog

3. Partial solution

Given our setup and limitations we have discussed previously, we have decided to use a neat feature available in Aerohive and separate the traffic at the entry point.

Aerohive setup

In Aerohive, we have configured a VLAN per user profile that we want to reroute. To do this, we have set a vlan for each user profile connecting to our wireless: Configuration --> Policy Configuration --> User Profiles.

Once the VLAN is assigned on Aerohive, it needs to be properly forwarded and redirected through all the switches all the way up to Fortigate unit. All traffic from this VLAN will end on Fortigate at a separate port from internal traffic effectively isolating these users from the rest of the network.

This means that Fortigate should be responsible for DHCP and DNS. But before we get there we need to make sure that Aerohive firewall allows this connection.

In Aerohive we need to allow access to our DNS/DHCP - GatewayGuest (The same as Fortigate IP on this VLAN- see the settings bellow). We also may need to allow access to some of our internal websites -DMZ.  We need to make sure that guest devices cannot communicate between them(hack each other etc.) - we therefore block all other internal IP access - - Block. Finally we allow all other communication (last line in the picture above). Since the rules are processed from top to bottom this scenario works as we have intended.

Fortigate setup

As I have mentioned earlier, the traffic from this special VLAN will directly arrive at Fortigate unit and is completely isolated from the rest of the network. Thus we will use a built-in features in Fortigate in order to give this users access to DHCP/DNS and maybe to our DMZ.

Port set-up

First, let's look at port setup. Go to Network --> Interface --> PortXX (where XX is the port number that will receive all the traffic).
As we can note in the picture above, we need to setup:
  • the name of the port - PORT_NAME,
  • a virtual domain that this port will belong to, if any
  • addressing mode should be manual (default) - because our unit will be serving DHCP it cannot get an IP from someone else,
    • IP/Mask should be in the same subnet as the ones in DHCP and it is the same as GatewayGuest set in Aerohive
  • the only Admin Access we allow is ping, but for hardened security even this can be deactivated,
  • DHCP server - enable
    • set the range and the mask for IP's that can be assigned to the clients
    • Default Gateway - same as interface unless you have a specific reason to set it up to something else
    • DNS Server - specify the same address as the IP set in Addressing mode - this will forward all DNS requests through Fortigate and will help us redirect internal traffic directly to DMZ
  • Enable device detection in Device Management - this will help us set policies per device type.
No we need to configure appropriate FireWall rules and DNS.


If the port we have configured above was assigned to a VDOM then inside VDOM look for System-->Network-->DNS Server.
First configure a DNS Database:

Back on the page of DNS configuration (System-->Network-->DNS Server), in the DNS Service on Interface create new DNS service as  Recursive. It is possible that Recursive option will not be available if you haven't set-up DNS Database. In this case, you will have the only available option Forward to System DNS.


Now we need to configure our firewall rules. We will need to create at least two rules:

  1. A rule forwarding traffic from the port we setup above to the port connected to WLAN.
  2. If required, a rule forwarding traffic to DMZ.
The first rule, from our port to the WLAN should be set-up according to your internal config but the following image may help.
Since at this moment we know for sure that traffic coming for this rule is not identifiable and may never be, we can at least work with device types and provide some granular security. At the moment Fortinet offers following categories:
Similarly, if we decide to setup WebQuota categories for some or all devices, it will work per device IP address. While it is not the same as to have per user name quota it is better than having none at all.

Final thoughts: I may be adding more details to DNS setup but. for now. I hope that everyone struggling like me will have enough information to have the above described config setup on their devices.

Thursday, January 17, 2013

2.2 Networking series - Fortigate RSSO

Fortigate RSSO currently looks like a half backed system that was tailored for a a specific use case. It does not look like a new feature that was designed from ground up with users in mind.

To configure RSSO agent look here:

To configure RSSO groups look here:

An example of use:

Currently, RSSO allows for following attributes:

rsso - enable/disable RADIUS based single sign on feature
- UDP port to listen on for RADIUS accounting packets
- enable/disable sending radius response packets
- enable/disable validating RADIUS request shared secret
- RADIUS shared secret for responses / validating requests
- RADIUS Attribute used to hold End Point name
- RADIUS Attribute used to hold endpoint to block
- RADIUS Attribute used to match the single sign on group value
- key prefix for the single sign on group value in the 'sso-attribute'
- timeout value for RADIUS server database entries (0 = infinite)
- minimum time period to use for event logs
- events to log
- enable/disable flush user IP sessions on RADIUS accounting stop

Following config should be used for our setup:
Enable in the interface port settings(Global-Network-Interface) the option to listen to accounting messages.  Then configure through CLI or a combination of Web Interface and CLI the following:

edit "RSSO_Agent"
set rsso enable

set rsso-radius-server-port 1813

set rsso-radius-response enable

set rsso-validate-request-secret enable

set rsso-secret ENC *****

set rsso-endpoint-attribute User-Name

set rsso-endpoint-block-attribute Called-Station-Id

set sso-attribute Vendor-Specific

set sso-attribute-key '6'

set rsso-context-timeout 28800

set rsso-log-period 0

set rsso-log-flags protocol-error profile-missing context-missing accounting-stop-missed accounting-event endpoint-block radiusd-other

set rsso-flush-ip-session disable


--- Set the shared secret between Radius server and Fortigate unit.

--- We need to classify the users based on their user names. Since we know that all our authentications come from a single AD service, a user that has two, three, four devices/sessions should have the same quota for all devices.
---- Remember that  our Aerohive units send Radius accounting packets to Fortigate. These packets contain Vendor specific attributes that contain group numbers.

However, we have been told by Fortigate support that two of them are there by mistake! That means that: sso-attribute-key and sso-attribute with value Vendor-Specific should not be available as options.This also means that Fortinet's implementation of Radius accounting parser is not feature complete and takes into account only basic attributes.

Moreover, the support states that:
  1. "RSSO uses only build in parameter set, and cannot be used in the same policy with FSSO users. You can use it with two different rules with FSSO if you don't use FSSOguest users" - this means that FSSO-Guest and RSSO are not compatible and FSSO and RSSO need to be separated in different policies.
  2. "Web filter work for all users, but Quota work only for "authenticated" users. That's mean it will not work for RSSO users,until we will allow for RSSO users to be "authenticated" users in next releases, and will not work for BYOD non-authenticated users." - this means that users authenticated with RSSO are not authenticated at all! In fact, in the current release(FortiOS 5.0 Build 0128) RSSO seems to be totally useless functionality. What can it do?
UPDATE from 18 January 2013 taken from Fortinet support engineer message(as is) italics-original message, everything else - my comments:
"1. RSSO is nt really "authenticated" users, like FSSO or LDAP for now. This option allow you to assign specific IP's to corresponding groups. The only limitation between LDAP user and FSSO user is using quota.
Since it is not "authenticated", you cannot use it with FSSO users in the same policy. This is a new feature, and will be extended in next releases.
" - Now everything is clear! After three months of suffering we got it. It was never made to work as authentication method similar to FSSO, LDAP etc. It is simply a way for large providers to assign IPs based on Radius records. Why the documentation says nothing? Why your own engineers do not know nothing about it?
"2. The Vendor-Specific was added by mistake, and cannot work by design. For "Vendor-Specific" you need tree parameters:
a. Attribute - It's Vendor-Specific in our case.
b. VS Attribute - This is not exist in our firmware.
c. attribute key - Used for parsing Attribute parameter, if Radius send not "", but "Group=". In this case key will be "Group=".  This means that sso-attribute-key is simply a setting that strips the prefix string specified from the attribute value received by the unit. As the support says if the value is "Group=mobile" and the sso-attribute-key is "Group=", Fortigate will only store and register "mobile" as the value.
Since we cannot configure "VS Attribute", "Vendor-Specific" will never work. This option will be removed from our firmware.
" It took us three months and close to a 100 hours of testing with five L2 support engineers to get where we are now . Great customer support!

Update from 09 May 2013: VendorSpecific sso-attribute is still in the latest built (v5.0,build0179 (GA Patch 2)) but it does not work.
Update from 28 May 2013: Confirmed with Fortinet support - the VendorSpecific attribute will be removed and will not work (the only question is when).

2. Networking series - Fortigate

Last time we looked at Aerohive Radius accounting message. This time we will be considering how Fortigate works.

We have the latest patch of version 5 FortiOS (FortiOS 5.0 Build 0128). This means that we have features such as:
  • FSSO - Fortinet Single Sign On, is a feature that requires an agent/collector setup to be installed on every AD and DC in the netwrok in order to collect and forward user logins to Fortiage unit. It is not perfect and may miss, sometimes, a logout. However,  we never encountered a problem with a missed login.
  • RSSO - Radius Single Sign On, is a feature that requires all accounting packets to be sent to Fortigate unit. This setup allows the unit use external Radius authentication server in order to classify users.
  • FortiBar - A tool bar that appears on some user accessed webpages with additional information and actions.
All of the above may be useful for our  project.

1.2 Networking series - Aerohive

As I stated earlier, Aerohive uses thick APs that in our setup act as Radius servers.

This means that they exchange auth/acc messages between the APs that must contain information on user classification. Given that info, we could, normally, redirect accounting messages to another server and use it as user identification.

In fact, Aerohive sends a standard accounting packet that has two vendor specific parameters.These parameters look in WireShark as:

AVP: l=12 t=Vendor-Specific(26) v=Aerohive Networks, Inc.(26928)
VSA: l=6 t=Unknown-Attribute(1): 00000001
Unknown-Attribute: 00000001


AVP: l=12 t=Vendor-Specific(26) v=Aerohive Networks, Inc.(26928)
VSA: l=6 t=Unknown-Attribute(6): 00000ffc
Unknown-Attribute: 00000ffc

One of these parameters, the second one, is of a particular interest to us.
In hex it looks like this: 1a 0c 00006930 06 06 00000ffc
  • 1a 0c => Vendor specific attribute
  • 00006930  => Vendor is Aerohive
  • 06 => sub-type is Aerohive-User-Profile-Attribute
  • 00000ffc => UPID value
This UPID value is the value we are looking for: it is a group to which a user belongs to!

A detailed Aerohive dictionary file that can be used in WireShark looks like this:
# -*- text -*-
#       The Aerohive Vendor-Specific dictionary.
VENDOR        Aerohive                26928
BEGIN-VENDOR    Aerohive

ATTRIBUTE       Aerohive-User-Vlan                  1       integer
ATTRIBUTE       Aerohive-Libsip-Patron-Info         3       octets encrypt=2
ATTRIBUTE       Aerohive-Libsip-Action              4       integer
ATTRIBUTE       Aerohive-Libsip-Additional-Message  5       octets
ATTRIBUTE       Aerohive-User-Profile-Attribute     6       integer
ATTRIBUTE       Aerohive-PPSK-Request               201     octets
ATTRIBUTE       Aerohive-PPSK-PMK                   202     octets
ATTRIBUTE       Aerohive-IDM-Message                203     integer
ATTRIBUTE       Aerohive-NT-Identity                204     integer

#   Integer Translations

#   Aerohive-Libsip-Action Values

VALUE   Aerohive-Libsip-Action            Permit      0
VALUE   Aerohive-Libsip-Action            Restricted  1
VALUE   Aerohive-Libsip-Action            Deny        2

END-VENDOR    Aerohive

1.1 Networking series - Setup

Some interesting and useful details on our config:

Our Fortigate unit uses FSSO plugin/software installed on our DC to get user ID's. It is also used to do traffic shaping and web filtering for all connections. The unit is installed on the edge and manages all traffic between various LAN's and two WLAN connections we have.

In the institution, we have WIFI available everywhere. We are using Aerohives APs. These are thick clients that can work without a controller and may also execute some additional roles. In our setup, the controller is used only for statistics and pushing new configs. Three access points are configured as redundant Radius Servers and one acts as an ActiveDirectory authenticator.
This means that wireless network is very resilient and places little load on the AD: it will cash user login/group. At the same time, user profiles are modified in real time according to their behavior and device they are using. For example, an admin using a wireless device will be placed in a special group that has less access than his/her normal profile.

All this functions normally, until the moment we would like to use Fortigate unit to do some accounting/web quota on the users coming from wireless. The machines that belong to our institution are registered in AD. The machines that belong to users, are not. As a result web quota does not work.
Can we do it somehow? Can we optimize our network traffic and identify, at Fortigate, all users (even if it is their own device)?

1. Networking series - Purpose

I decided to post a few rants about some of our problems/solutions we have encountered on our network.

Our set-up:
Wired network is all gigabit managed Cisco switches with some security ensured by PacketFence.
Wireless network is composed of a series of  Aerohive AP's with a controller in a VM.
Edge security and many other things are managed by a Fortigate unit.

Now, all this works really nice until the moment you attempt to do something less common. For example, set web quotas for all users.

We have found that it is not as easy as it seemed and will probably never work as we hoped. The following posts will detail our findings.
